Quality Makes the Future
Products Categories
We offer an extensive product portfolio with over 5,000 insert models, catering to all your milling, turning, and drilling requirements.
Application Areas
Electronics & Appliances

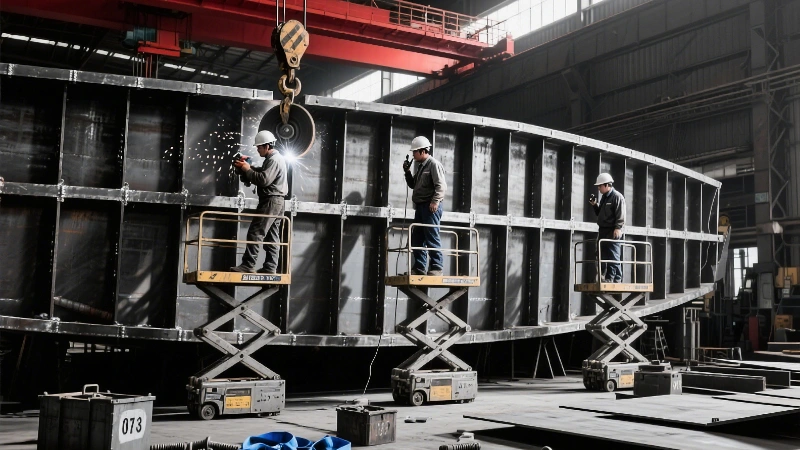

General Machinery

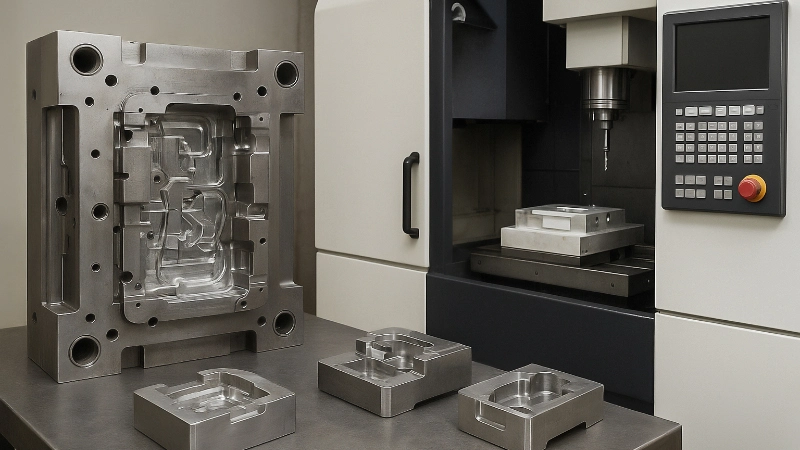

Mold & Die Manufacturing
Bathware & Plumbing Components
Automotive Parts
Aerospace Components
NANZHI Key Advantages
0
㎡
factory space
0
+
product model
0
Million
inventory

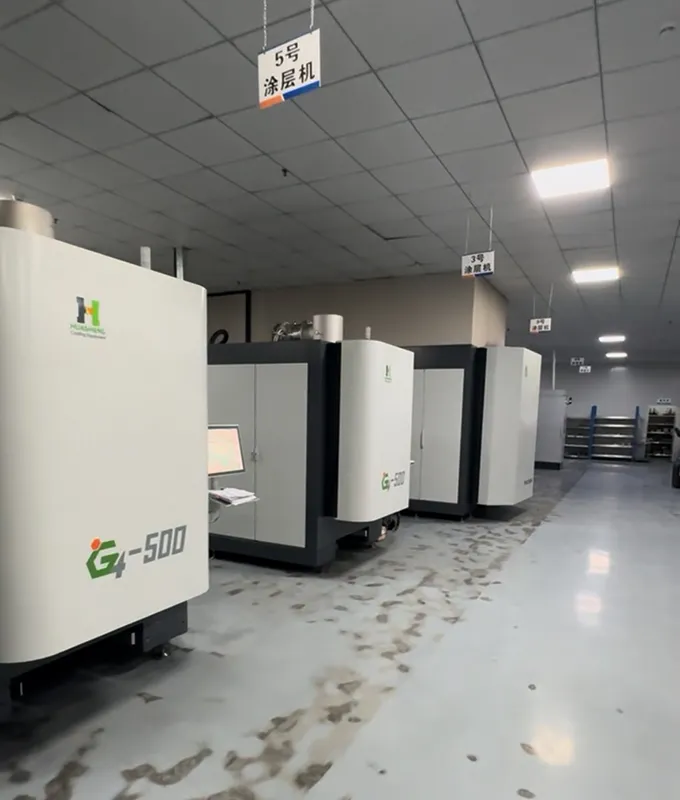

0

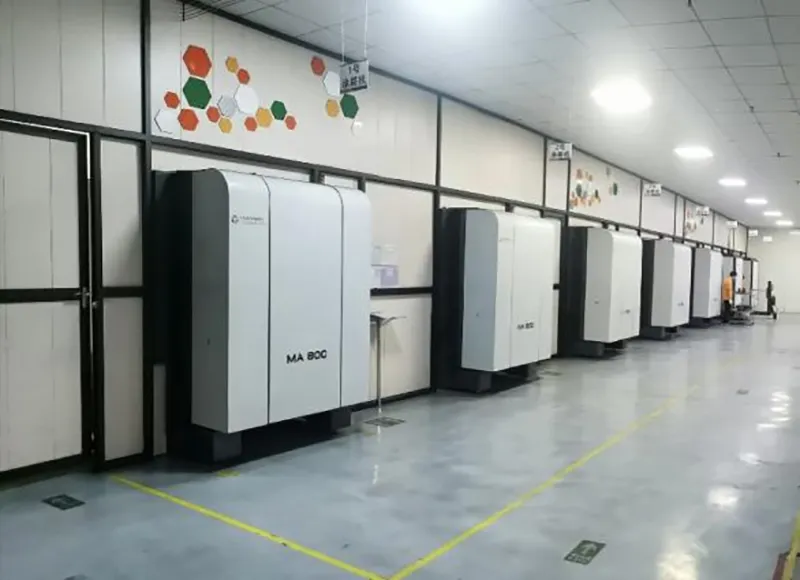

coating machine
Processing Cases

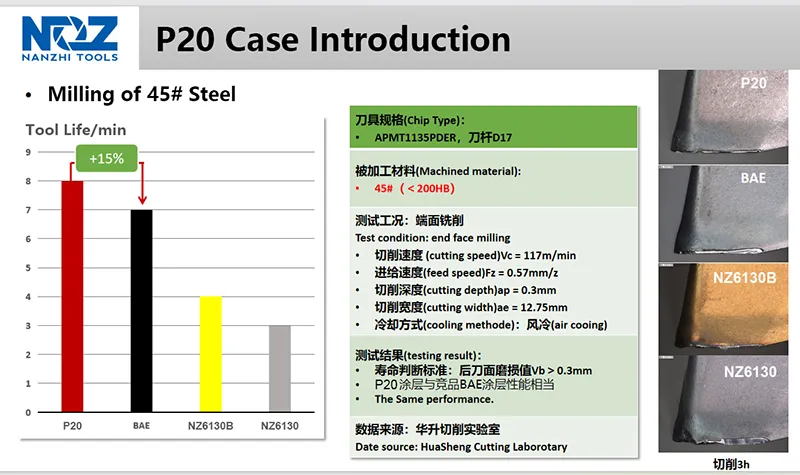

Chip Type:
- APMT1135PDER
- D17 Tool Holder
Machined material:
- 45# (<200HB)
Test condition: end face milling
- Cutting speed Vc = 117m/min
- Feed speed Fz = 0.57mm/z
- Cutting depth ap =0.3mm
- Cutting width ae =12.75mm
- Cooling metho de: (air cooing)”
Testine result:
- Vb＞0.3mm
- Life Judgment Standard: Flank Wear Value Vb > 0.3mm
- The performance of the P20 coating is comparable to that of the competitor’s BAE coating.
- The Same performance.”
Date source: HuaSheng Cuttine Laborotarv”

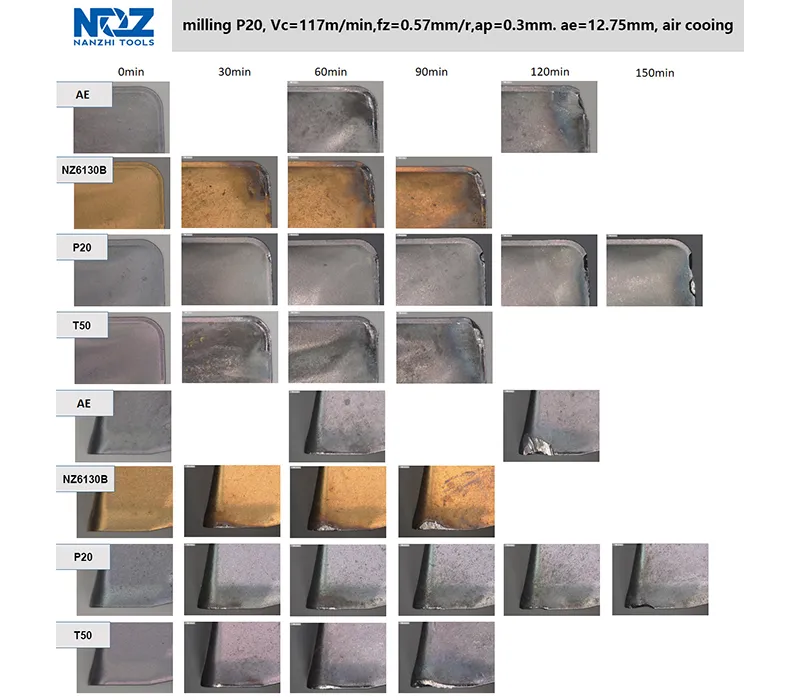

Chip Ttpe:
- APMT1135PDER
- D17 Tool Holder
Machined material:
- P20 Mold Steel ( 28-32 HRC)
Test condition: end face milling
- Cutting speed0 Vc = 117m/min
- Feed speed Fz = 0.57mm/z
- Cutting depthap =0.3mm
- Cutting width ae =12.75mm
- Cooling methode: air cooing
Testine result:
- Life Judgment Standard: Flank Wear Value Vb > 0.3mm
- When the P20 coating is used to machine P20 mold steel, its performance is superior to that of the competitor’s AE coating, and also superior to that of the T50 and NZ6130B.
Date source: HuaSheng Cuttine Laborotarv”

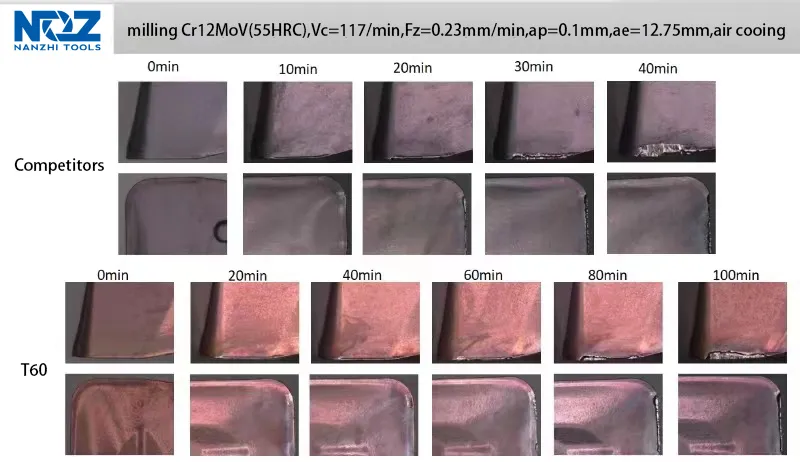

Chip Type:
- APMT1135PDER
- D17 Tool Holder
Machined material:
- Cr12MoV ( 55-62 HRC)
Test condition: end face milling
- Cutting speed0 Vc = 117m/min
- Feed speed Fz = 0.23mm/z
- Cutting depthap =0.23mm
- Cutting width ae =12.75mm
- Cooling methode: air cooing
Testine result:
- Life Judgment Standard: Flank Wear Value Vb > 0.3mm

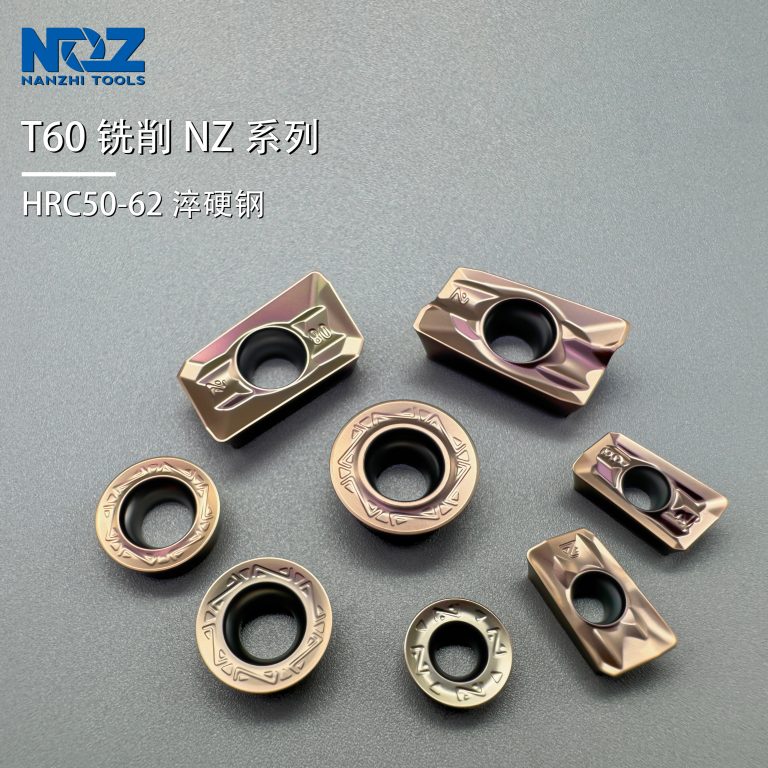

- When processing Cr12MoV using the T60 process, its performance is twice that of similar products from competitors.
Date source: HuaSheng Cuttine Laborotarv”
/
